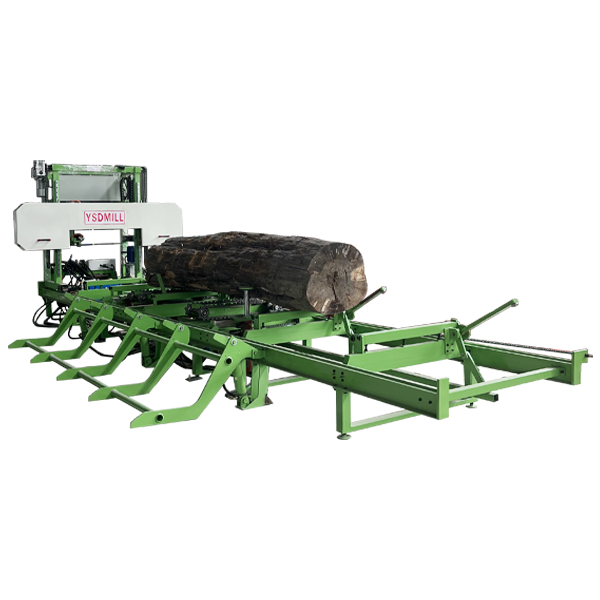

Automatic Hydraulic Horizontal Sawmill is the latest large-scale horizontal band saw machine developed by YSDMILL. This equipment can cut logs with larger diameters. Equipped with an automatic feeding system. Automatic locking, automatic turning, and automatic walking. Hydraulic power device, fast response, strong power.
It is suitable for large-scale production in sawmills, and is widely used in large-scale wood processing in virgin forest areas.
Carbide saw blade for smooth and precision cutting.
Customization is supported, and the machine can be customized according to the diameter and length of customer's wood.
Cast-iron headblocks with Hydraulic / pneumatic cylinder for tight log locking.
Moveable headblocks is optional.
Stronger log locking hook.
The products are of high quality and good price, and at the same price, our machines have more advantages in quality.
The company's pre-sales service and after-sales service are serious and responsible, and it can patiently solve all customers' problems about machines, so as to ensure that the machines can be used by customers to complete every job with high quality.
Automatic Hydraulic Horizontal Sawmill | |||
Model | YMJ25-800 | YMJ32-1000 | YMJ40-1300 |
Saw wheel diameter | 630mm | 800mm | 1000mm |
Max sawing diameter | 800mm | 1000mm | 1300mm |
Max sawing length | 4000mm | 4000mm | 4000mm |
Saw blade width | 50mm | 80mm | 100mm |
Saw head power | 18.5kw | 22kw | 37kw |
Saw blade tension | Automatic / Manual | ||
Max cutting thickness | 200mm | 240mm | 240mm |
Saw head up&down | Electric motor | ||
Saw head Walking | Electric motor | ||
Log loading | Automatic / Manual | ||
Log turning | optional | ||
Log locking | optional | ||
Log leveling | optional | ||
Voltage | 380v/50hz/3phase | ||
Hydraulic power | 5.5kw | 5.5kw | 7.5kw |
Length of track | 6 Meter | ||
Weight | 2000kg | 2400kg | 2700kg |
1. Raw Materials Cutting
2. Plasma Cutting
3. Welding
4. Boring Machine
5. CNC Machining Precess
6. Painting Spray
7. Band Saw Install
8. Finished Saw Carriage
9. Finished Band Saw
Xingtai YSDMILL Machinery Manufacturing Co., Ltd is located in Xingtai city, Hebei province China. Since it has been established nearly three decades, our company has become a professional woodworking machinery manufacturer that integrated the research, development, production, sales and after - sales service as one.
Meanwhile, YSDMILL has been a well known sawmill machinery manufacture at home and abroad. Our woodworking band-sawing machine and woodworking log carriage rank at the top position in the domestic sales industry.
Q: Are you a trading company or a manufacturer?
A: We are manufacturer.
Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.
Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.
Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.
Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.
Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
