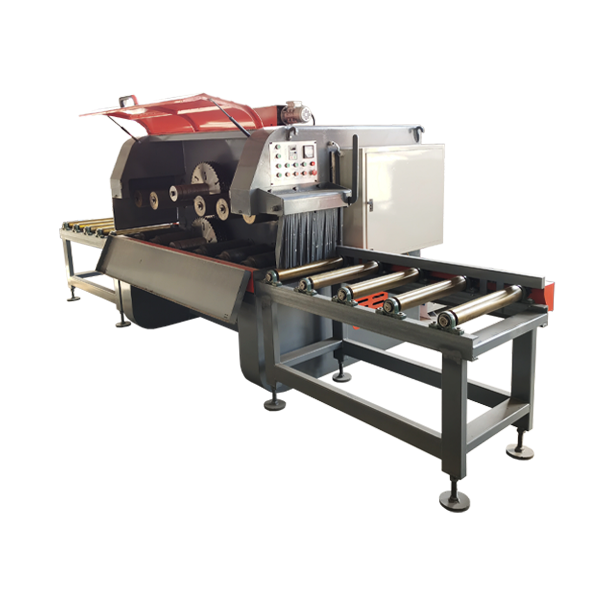

Square wood rip saw machine uses circular saw blade for cutting. Square wood rip saw machine can cut a square log into multiple pieces of wood at the same time. You can adjust the thickness of the cut wood according to your needs. The feeding device inside the machine is a textured roller, which increases the friction and does not damage the wood surface. Protective measures are provided at the feeding and discharging ports to prevent workers from being injured by sawdust during machine operation.
The Square wood rip saw machine can cut square wood to many pieces according to customers' requirements. Square wood height between 60mm to 120mm, this rip saw all cutting good. If you need lengthen the feeding panel, we can also custom-made for you.
Square multi Rip Saw is suitable for farm owner and wood process company.
Simple operation, only one person needs to control the operation of the machine, saving labor cost.
The products are of high quality and good price, and at the same price, our machines have more advantages in quality.
The company's pre-sales service and after-sales service are serious and responsible, and it can patiently solve all customers' problems about machines, so as to ensure that the machines can be used by customers to complete every job with high quality.
Model | YSR120-300 | YSR160-300 | YSR200-400 |
Wood sawing height | 50-120mm | 70-160mm | 90-200mm |
Max sawing width | 300mm | 300mm | 400mm |
Circular blade diameter | 230mm | 280mm | 320mm |
Feeding motor | 1.5kw | 1.5kw | 1.5kw |
Feeding speed | Adjustable | Adjustable | Adjustable |
Saw power | 2x30kw | 2x37kw | 2x45kw |
Voltage | 380v/50hz/3phase | 380v/50hz/3phase | 380v/50hz/3phase |
Overall size | 2250*1450*1500mm | 2300*1450*1500mm | 3200*1700*1900mm |
Weight | 1650kg | 1720kg | 3300kg |
1. Raw Materials Cutting
2. Plasma Cutting
3. Welding
4. Boring Machine
5. CNC Machining Precess
6. Painting Spray
7. Band Saw Install
8. Finished Saw Carriage
9. Finished Band Saw
Xingtai YSDMILL Machinery Manufacturing Co., Ltd is located in Xingtai city, Hebei province China. Since it has been established nearly three decades, our company has become a professional woodworking machinery manufacturer that integrated the research, development, production, sales and after - sales service as one.
Meanwhile, YSDMILL has been a well known sawmill machinery manufacture at home and abroad. Our woodworking band-sawing machine and woodworking log carriage rank at the top position in the domestic sales industry.
Q: Are you a trading company or a manufacturer?
A: We are manufacturer.
Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.
Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.
Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.
Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.
Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
