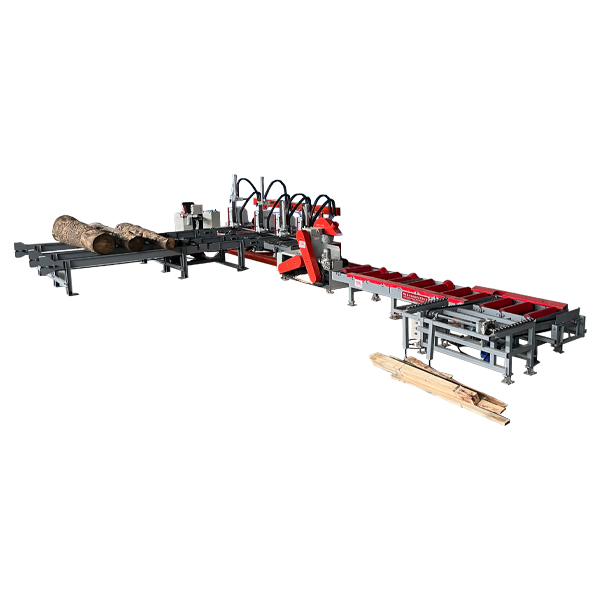

The Circular saw with log carriage sawmill line is the newest design. Circular saw with log carriage sawmill line is a combination of circular saw and log carriage to achieve the sawing of wood.This assembly line can be applied to various sawing and cutting sites. Fast sawing speed and high work efficiency.
1. CNC Control system
2. Log loading deck
Forklift or wheel loader put log on chain conveyor,then transport log to saw carriage.
3.Circular saw machine
4.CNC Log carriage
Touch scree control
Automatic log locking
Automatic log turning
Cutting speed adjustable
5. Wood plank output conveyor
Collect wood board/plank/timber after cutting
High working efficiency, labour cost saving
Circular saw with log carriage sawmill line | |
Model | YACL40-4000 |
Max sawing diameter | 400mm |
Max sawing length | 4000mm |
Log loading | Automatic loading deck(1set) |
Log turning | Pneumatic(4units) |
Log locking | Pneumatic(4units) |
Moveable headblocks(Taper) | Pneumatic(2units) |
Cutting speed | Adjustable by frequency converter |
Cutting measurement | Automatic |
Carriage walking motor | 2.2kw |
Measurement motor | 1.5kw |
Board discharge roller conveyor length | 4500mm |
Roller conveyor width | 650mm |
Qty of chain arm | 2units |
Length of carriage track | 9000mm |
Custom-made service | Provided |
1. Raw Materials Cutting
2. Plasma Cutting
3. Welding
4. Boring Machine
5. CNC Machining Precess
6. Painting Spray
7. Band Saw Install
8. Finished Saw Carriage
9. Finished Band Saw
Xingtai YSDMILL Machinery Manufacturing Co., Ltd is located in Xingtai city, Hebei province China. Since it has been established nearly three decades, our company has become a professional woodworking machinery manufacturer that integrated the research, development, production, sales and after - sales service as one.
Meanwhile, YSDMILL has been a well known sawmill machinery manufacture at home and abroad. Our woodworking band-sawing machine and woodworking log carriage rank at the top position in the domestic sales industry.
Q: Are you a trading company or a manufacturer?
A: We are manufacturer.
Q: What types of woodworking machinery does YSDMILL offer?
A: YSDMILL offers a comprehensive range of woodworking machinery, including woodworking band-sawing machines, woodworking log carriages, and other auxiliary equipment.
Q: Does YSDMILL offer custom-made solutions for wood processing?
A: Yes, absolutely! We understand that every woodworking project is unique, and we take pride in providing personalized wood processing line solutions tailored to meet your specific requirements.
Q: How to know which model is suit for our request?
A: Send us the length and diameter specification of your wood, then we will recommend you the suitable machine.
Q: How about your delivery time?
A: For our standard vertical/horizontal band saw, we have it in stock. For the customized sawmill equipment we need 10-30days to production.
Q: How does YSDMILL handle after-sales service and support?
A: We are committed to customer satisfaction and offer comprehensive after-sales support. Our team provides installation assistance, maintenance services, and readily available spare parts to ensure the smooth operation of our machinery.
